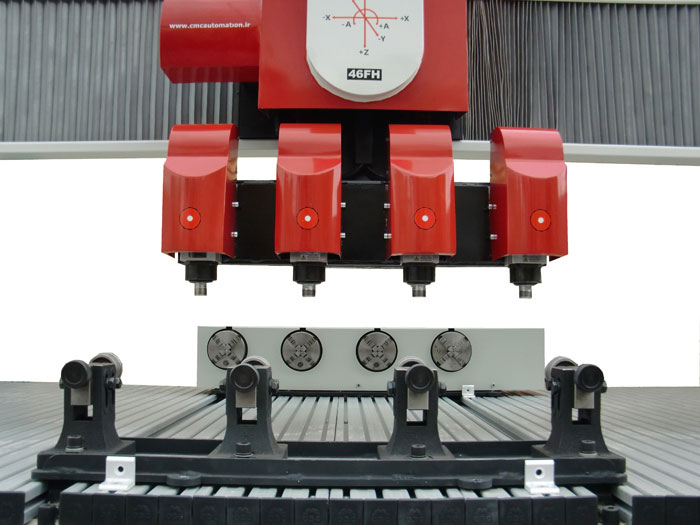

Four-axis and four-head wood cutting , carving , lathing m, and inlaying CNC machine; Model King 46-FH
Specifications :
Compatible with a variety of designing software such as: 3DMax, Mechanical, Autocad, Solidworks, Artcam, and CorelDraw
Equipped with Gantry system (force transmission on axis from two sides) using Taiwan AC servo motor (or Japan AC on request) and Taiwan planetary gearbox
Production of chassis and machined metal body using standard industrial profile
Equipped with Taiwan ball screw navigation system for all axes in order to move smoothly and without error and minimal clearance
Equipped with Turkey manual control handle (Taiwan wireless manual control on request)
Equipped with Taiwan standard rail and carriage system
Equipped with industrial operational rack IP 43 with Germany Rittal design in order to prevent penetration of dust and moisture
Using Taiwan panel PC without fan and equipped with touch monitor IP 65
Using industrial electric components with reputable brands such as : DELTA, PHOENIX,Siemens,Omron,AUTONICKS,EMAS,FUJI,AEG,…
Equipped with full Persian simultaneous four-axis control software with educational information
Capability of flat and three dimensional cutting and carving of statue, fence, stairs, and furniture leg
Using accordion system (axes cover)
Using four spindle motors 3 to 10 KW with 24000rpm
Using Italian panel fan cooler for ventilating operational rack and longevity of industrial electric components
Equipped with automatic lubrication for all axes
High speed of axes at Max 15000mm/min with precision up to 0.001
Capability of changing to full automatic lathing mode for increasing speed of operation (cutting four legs in every two minutes)
Possibility of carving to a depth of 400mm and dimensions of 1300*2400mm. (dimensions of working piece place based on request)
Possibility of cutting wooden fence and statue up to 300mm diameter and 1300mm length simultaneously on four working pieces
Providing set of educational designing software with Persian menu and more than 10000 flat and three dimensional pre-designed samples
Dimensions of machine: 2200(height)*3300(length)*2200(width)
One year warranty and 10 year after-sales service
